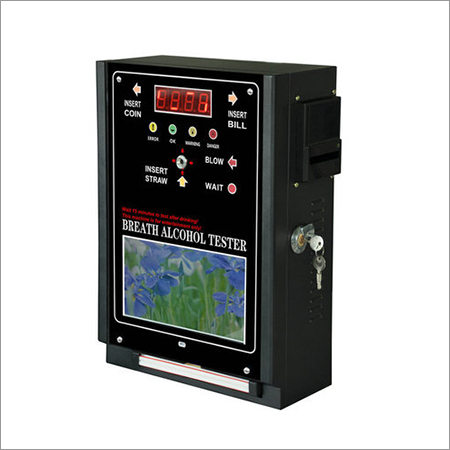

Wall Mounted Alcohol Breath Analyser AT320

Wall Mounted Alcohol Breath Analyser AT320
Wall Mounted Alcohol Breath Analyser AT320
Product Code : AT320
Product Description

Key Feature:

  • Suitable for bar, or restaurant, hotel, disco etc public places
  • Fuel cell sensor, sensor module replaceable
  • Operated by disposable straw
  • Straw box for 200pcs straws one time
  • Other language panel offered
  • Audio and Light warning method
  • Test result with 4 digits display
  • Large lighting block to indicate the operating procedure on the panel
  • Notable for its space saving design, this precisely designed wall mounted alcohol breath analyser requires around 5 seconds for collecting breath sample
  • It adopts easy to replace fuel cell sensor
  • It usage disposable straw for collecting breath prevents contamination
  • It shows test result by displaying through four digits
  • Long functional life
Specifications:
  • Sensor type: Fuel cell sensor
  • Test Range: 0.000~2.000mg/l
  • (0.400%B.A.C; 4.000%oB.A.C; 4.000g/l;)
  • Alarming level:
  • Warning level: 0.090mg/L (could be modified)
  • Danger level:  0.250mg/L (could be modified)
  • Accuracy: +/-0.005 at 0.05BAC%
  • Working environment:
  • Temperature: 0oC~50oC  Humidity: <95%RH (No Dews)
  • Power: AC110-220V 50-60Hz
  • Calibration: no necessary, well pre-calibrated sensor module changeable
  • Dimension l X b X h: 250mm X 105mm X 400mm
  • Indication manner: mg/l,mg/100ml,g/l ,%BAC,%oBAC optional
  • Coin for single time: 0-15
  • Coin specification:
  • Diameter: 20mm-28mm, thickness: 1.2mm-2.5mm
  • Coins Capacity: about 600 pieces;
  • Bill width: 62-72mm; Bill capacity: 600pcs
  • Straw capacity: 200pcs(<=7mm)
  • Breath sampling time: about 5 seconds continuous breath
  • Certificate:CE
