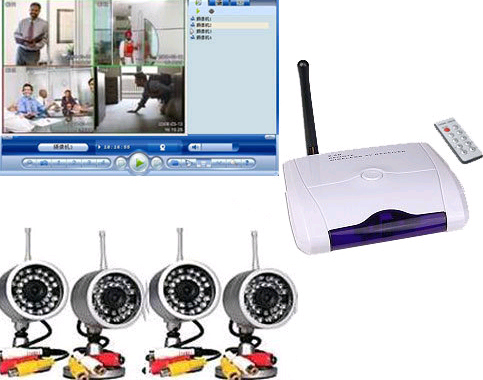

Wireless Camera Kit

Wireless Camera Kit
Wireless Camera Kit
Product Code : CK-191
Product Description

Owing to our expertise in this domain, we are able to provide high quality Wireless Camera Kit CK-191. The offered camera kit is highly demanded for sending video over the air to a receiver without any wire. This camera kit is manufactured using optimum quality components and ultra-modern technology at our authorized vendors’ end. In addition to this, our prestigious clients can get the provided Wireless Camera Kit CK-191 at market leading prices from us.


  • Portable
  • Better functioning
  • Excellent durability
  • Compact design

Key Specifications:

  •  The receiver can support 4 cameras at the same time
  •  Camera design with waterproof.
  •  Camera works with wire and wireless.
  •  Receiver with 4 channels exchangeable by auto & manual.
  •  Switch the receivers channels by remote control.
  •  100m transmission distance without block.
  •  Camera with 30pcs of φ5 LED infrared lamps and 15m night vision distance.
  •  Audio monitoring with microphone in camera.
  •  380 TVL of horizontal definition.
  •  Transmission Frequency:ISM 2,400 MHz ~ 2,483 MHz, 4 channel.
  •  Modulation Mode: FM
  •  Operating Humidity: 85%RH
  •  Unobstructed Effective Range 100m(Without Block)
  •  Operating Temperature: 0 ~ +50 Degrees Celsius
  •  Storage Temperature: -20 ~ +60 Degrees Celsius

Camera Specifications:

  • TV System: PAL/NTSC
  • Validity Pixel: -628(H) x 582(V)(PAL) -510(H) x 492(V)(NTSC)
  • Image Device: 1/3" OmnVision CMOS
  • Horizontal Definition: 380TV Line
  • Angular Field of View: 45 degrees (f=6mm)
  • Minimum Illumination: 0 Lux
  • Scanning Frequency(H): - 15.625KHz (PAL) - 15.734KHz (NTSC)
  • Scanning Frequency - 50Hz(PAL) - 60Hz(NTSC)
  • Power Adapter: DC 12V/500mA
  • Dimension(L x W x D):57 x 57 x 68 mm
  • Receiver Specifications:
  • Receiving Sensitivity < / = -85dBm
  • Video Output: 1Vp-p@75Ω,S/N > 38dB
  • Audio Output: 10KΩ/200mVp-p
  • Antenna: 50ohm SMA
  • Intermediate Frequency: 480MHz
  • Power Adapter: DC 12V/500mA
  • Dimension(L x W x D): 120 x 99 x 30 mm
